Particle Plus 8306

SKU: 8306

* For Pro Installers.  Please allow 5 business days for processing and fulfillment.

The Particles Plus 8306, with its advanced features and industry leading accuracy is the best overall instrument to test the environment and provide features with visual indication that results in an end consumer being convinced on how great our air filtration solutions are. By taking the readings from this particle counter and plugging it into the air quality test template on the Pure365 iPad app you can provide an indoor vs outdoor air quality comparison result that can be emailed to your client on the spot. This usually elicits a deeper conversation on what sort of solutions can help improve the air quality in their home.

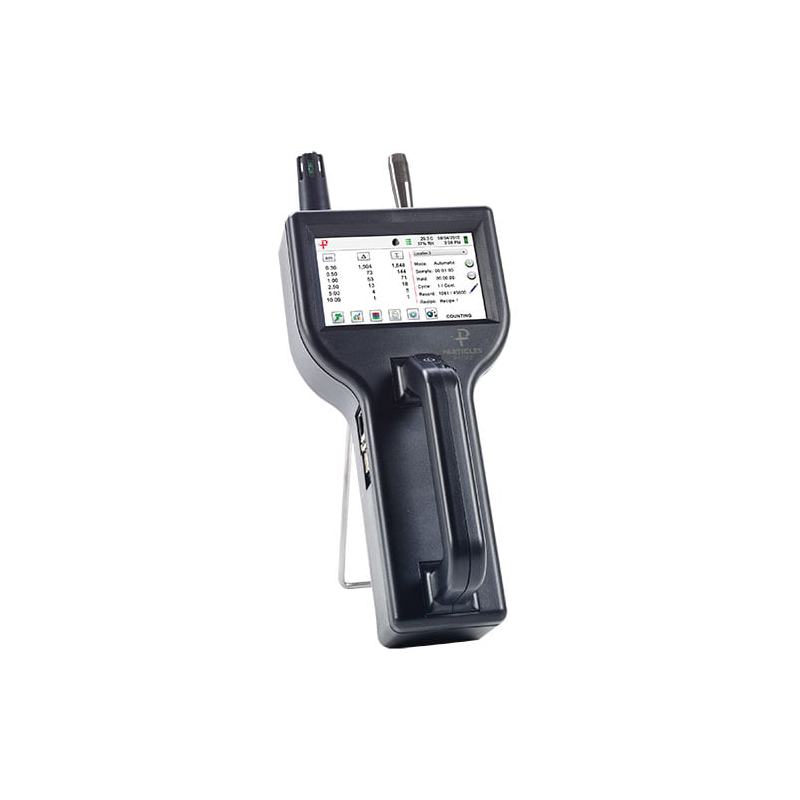

The Particles Plus 8306 Handheld Particle Counter measures 0.3 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus data-download software. Particles Plus counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³.

All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8306 ensures compliance with an on-board pulse height analyzer.

Features & Benefits

Measures 0.3 μm to 25.0 μm
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³
Integrated handle for one-handed operation
Large easy-to-use icon driven color touch screen display
Temperature and relative humidity probe included
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232
Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
Internal audible alarm
User-definable reports
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Lightweight high-impact injection molded plastic enclosure
2 year warranty. Extended warranties available.
